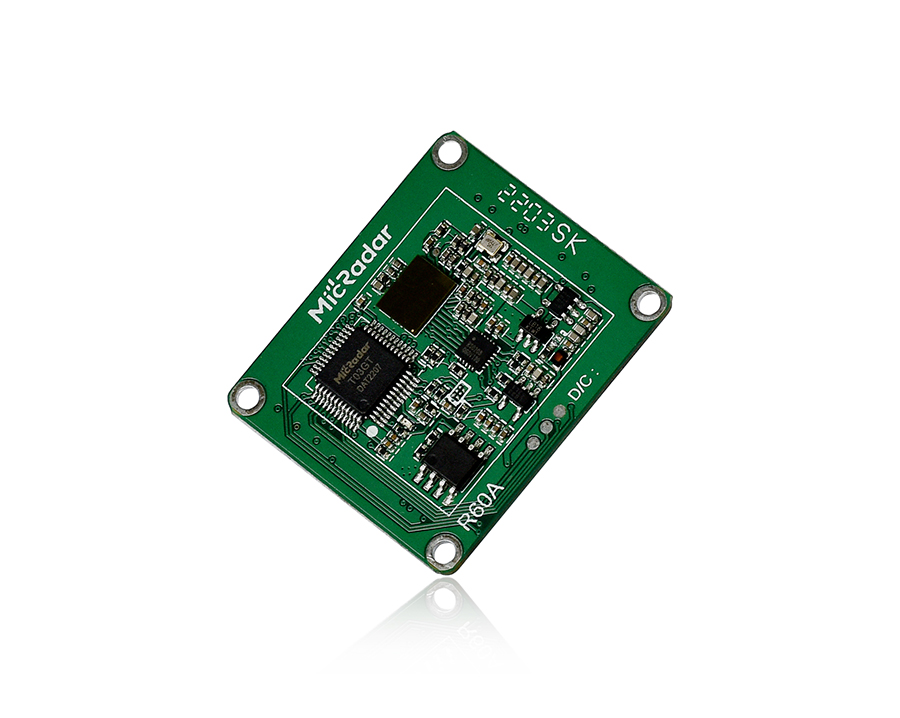

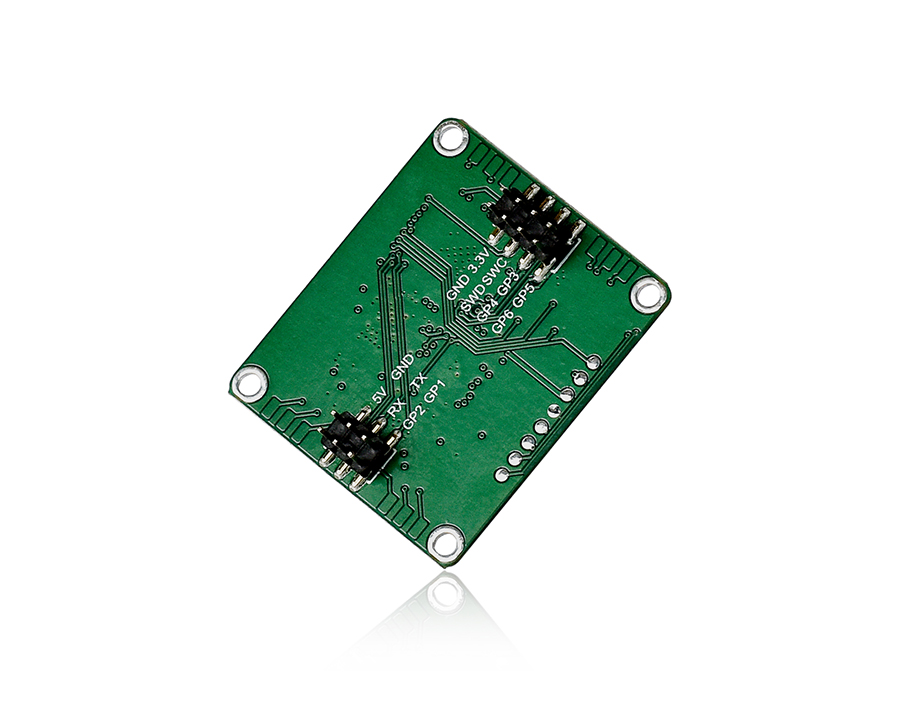

60G Fall alarm（Inclined outfit） R60AFD2

R60AFD2 radar module is a 60G millimeter wave radar technology, through the point cloud imaging algorithm to achieve human posture recognition, can accurately detect the lying state; And accurate life detection, residence time, stationary state of the body are accurately reported.

Secondary development information:

1) Radar built-in algorithm processor, direct output results, no need for cloud computing

2) The detection results of radar are output by SCM serial protocol

3) Communication module (WiFi, 4G, etc.) is not included in the design of radar module

Detection range:

1) Trigger range and accurate detection range of yunfan radar calibration

2) The maximum accurate detection range is usually within the conical Angle of 100 degrees within the design range of radar antenna

3) The radar detection range can be adjusted by adjusting the Angle and distance

4) The detection accuracy is closely related to the detection target distance

Usage:

1) Installed in a fixed position, accurate detection of external moving objects

2) Radar penetrates low density objects such as thin wooden planks. Caution False positives are caused by large detection range

3) Due to different electromagnetic wave noise in different environments, electromagnetic environment at the bottom of radar is required in some cases
