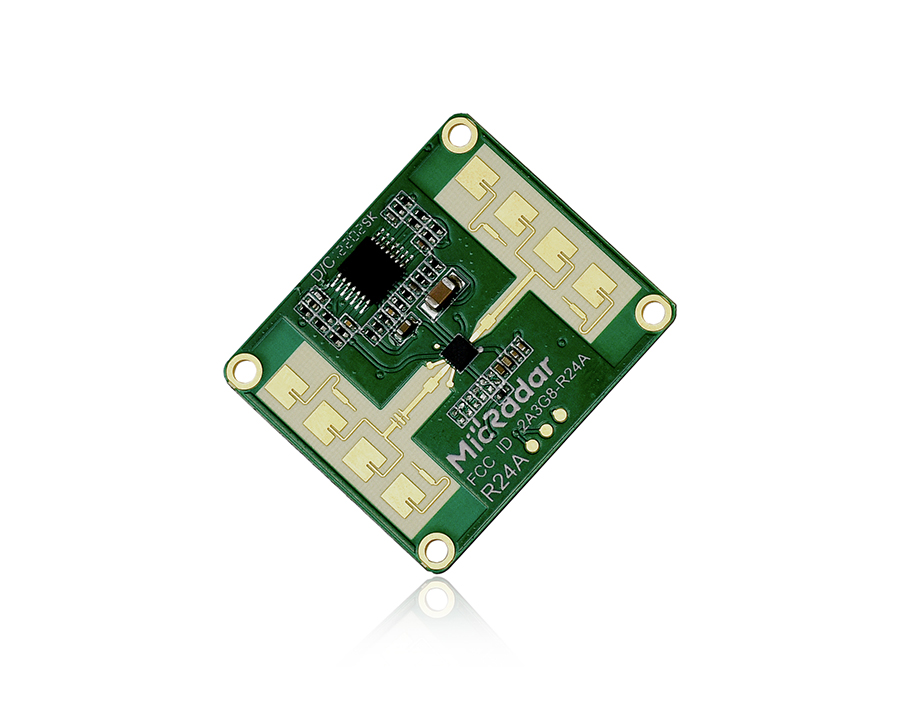

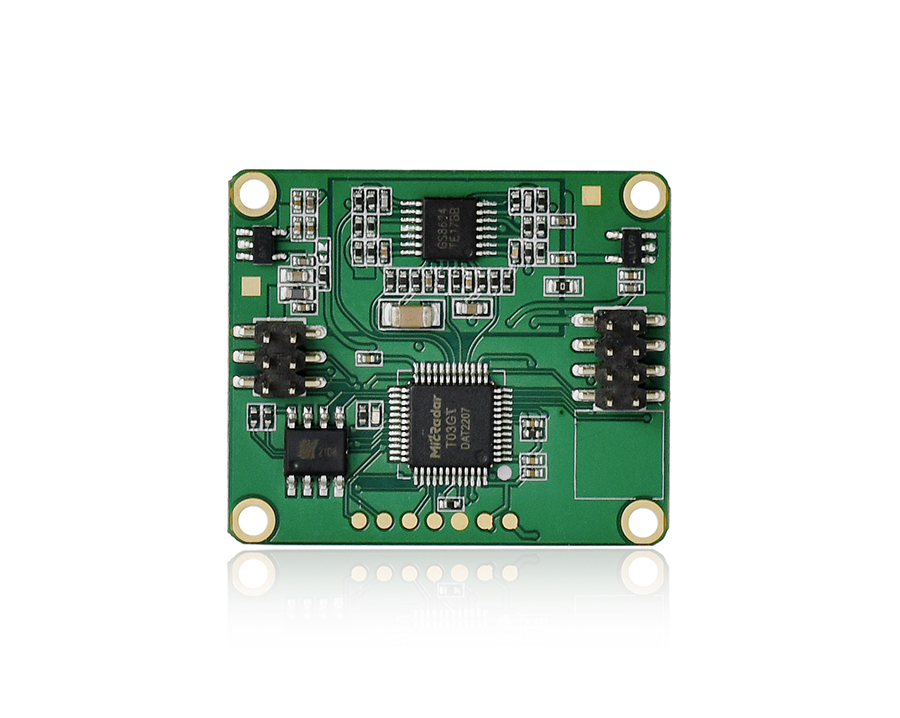

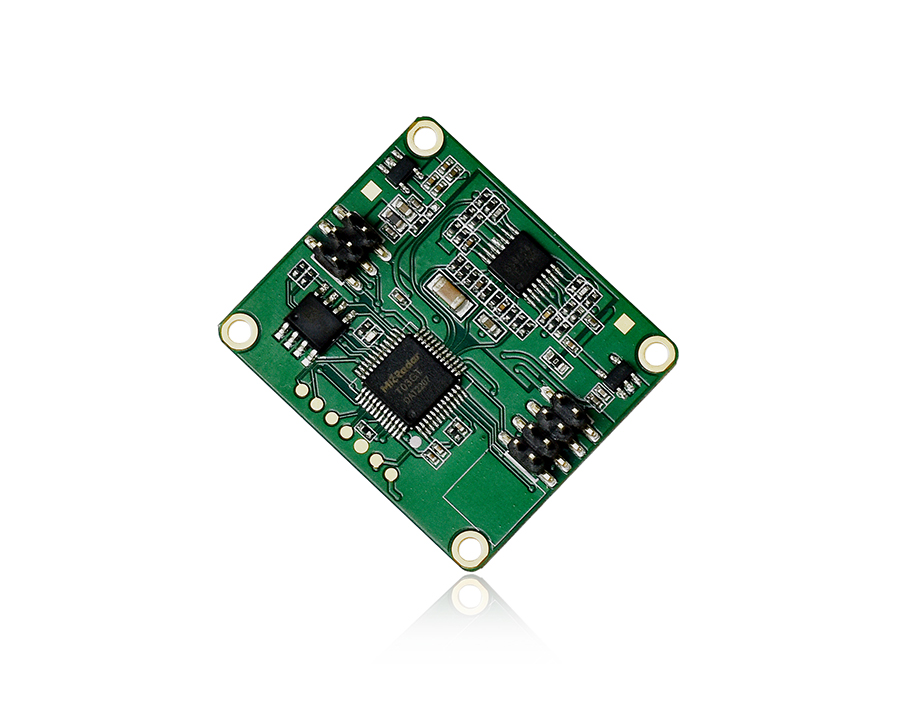

24G Park alarm R24AFD1

R24AFD1 is based on millimeter wave radar to realize static sensing of human biological movement and biological sensing of human body. By measuring body breathing range and motion range, it can accurately detect the existence of life within the range of radar antenna, and alarm the continuous static state of human body.

Secondary development information:

1) Radar built-in algorithm processor, direct output results, no need for cloud computing

2) The detection results of radar are output by SCM serial protocol

3) Communication module (WiFi, 4G, etc.) is not included in the design of radar module

Detection range:

1) Trigger range and accurate detection range of yunfan radar calibration

2) The maximum accurate detection range is usually within the conical Angle of 100 degrees within the design range of radar antenna

3) The radar detection range can be adjusted by adjusting the Angle and distance

4) The detection accuracy is closely related to the detection target distance

Usage:

1) Installed in a fixed position, accurate detection of external moving objects

2) Radar penetrates low density objects such as thin wooden planks. Caution False positives are caused by large detection range

3) Due to different electromagnetic wave noise in different environments, electromagnetic environment at the bottom of radar is required in some cases
