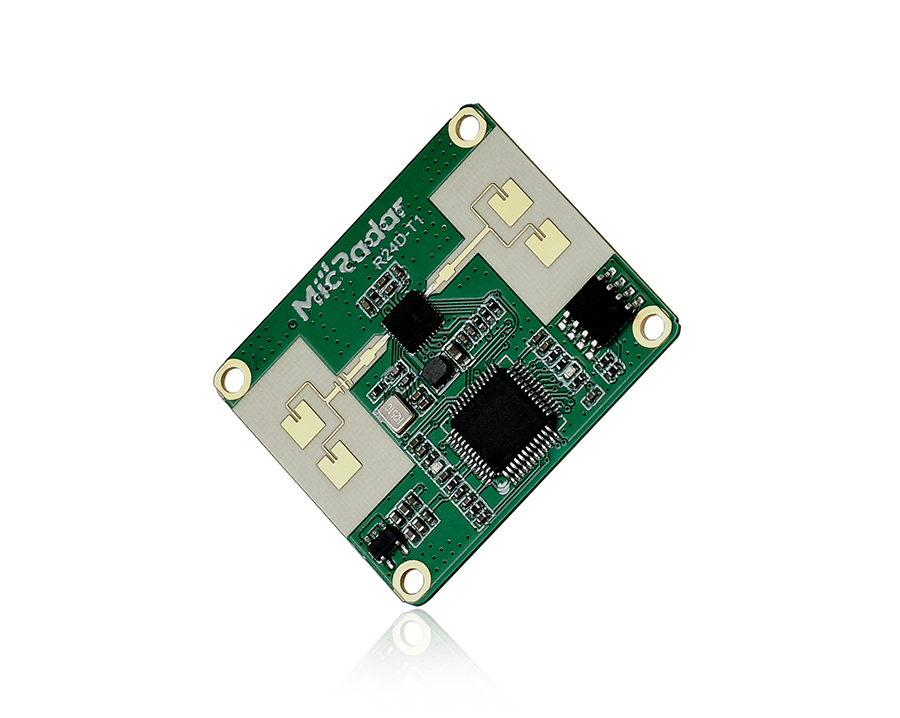

R24DVD1 is based on millimeter wave radar to realize human biological presence perception and human movement perception, continuously record human existence, residence time, and body movement amplitude, and can realize scene linkage through wireless signal notification gateway.
Secondary development information:
1) Radar built-in algorithm processor, direct output results, no need for cloud computing
2) The detection results of radar are output by SCM serial protocol
3) Communication module (WiFi, 4G, etc.) is not included in the design of radar module
Detection range:
1) Trigger range and accurate detection range of yunfan radar calibration
2) The maximum accurate detection range is usually within the conical Angle of 100 degrees within the design range of radar antenna
3) The radar detection range can be adjusted by adjusting the Angle and distance
4) The detection accuracy is closely related to the detection target distance
Usage:
1) Installed in a fixed position, accurate detection of external moving objects
2) Radar penetrates low density objects such as thin wooden planks. Caution False positives are caused by large detection range
3) Due to different electromagnetic wave noise in different environments, electromagnetic environment at the bottom of radar is required in some cases

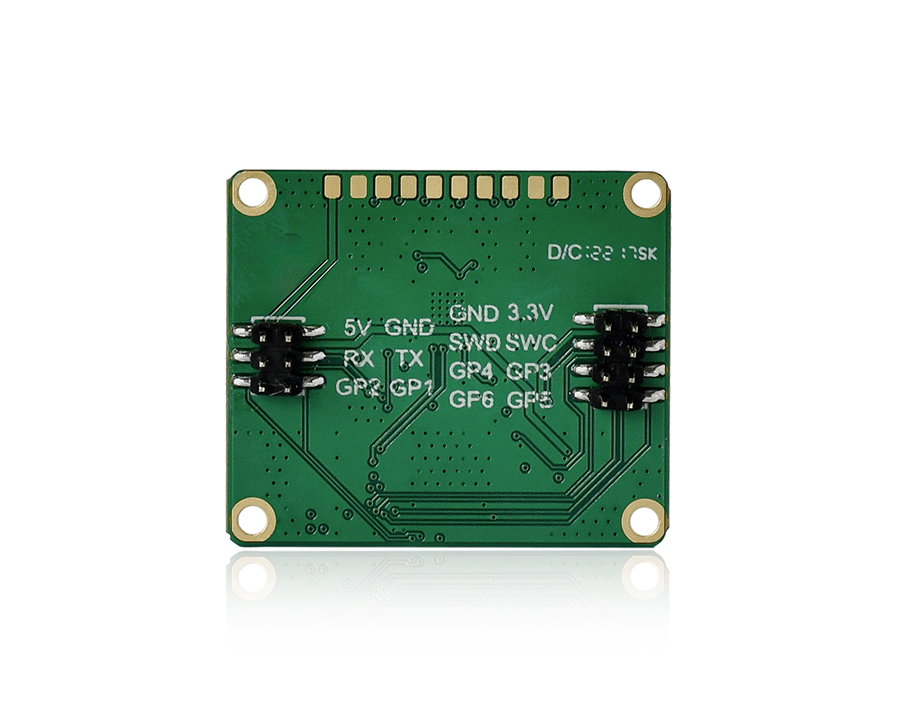

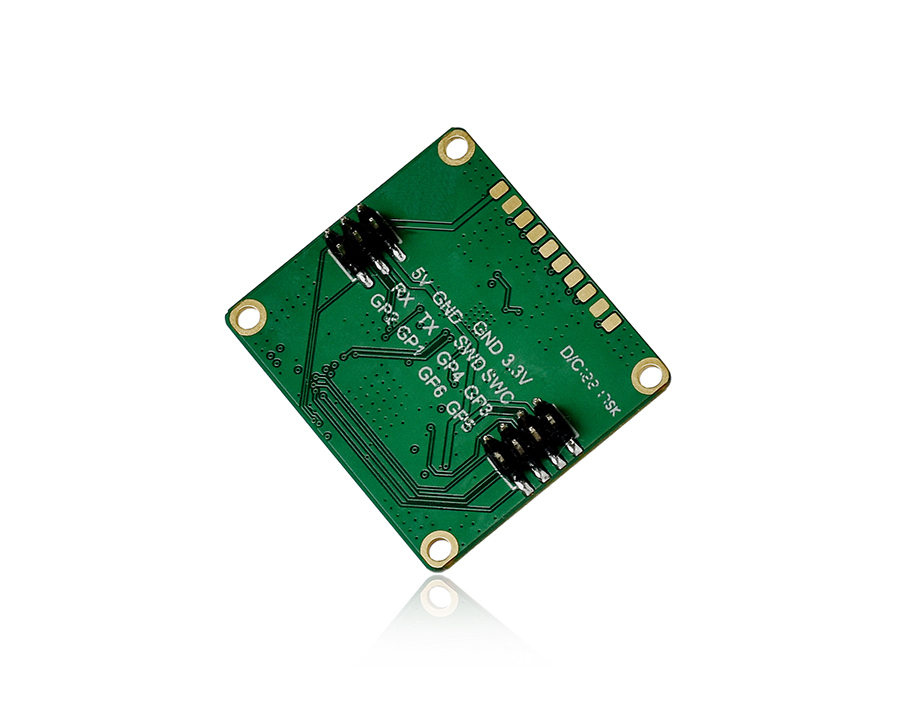

24G Human existence R24DVD1 | |
Output: | Someone/Nobody |
Product size: | ≤35mm×30mm×5mm |
Working frequency: | 24-24.25GHz |
Transmission power: | 6dBm |
Product power consumption: | 5V/93mA |
Working voltage: | 3.3V |
Output format: | Serial port/high and low level |
Installation direction: | Top loading |
Installation height: | 2.75m |
Detection direction: | Level90°/Vertical60° |
Motion detection range(r): | 8m |
Stationary detection range(r): | 6m |
